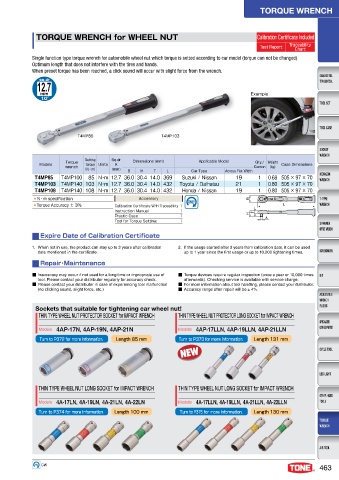

TORQUE WRENCH for WHEEL NUT Calibration Certificate Included

Test Report Traceability
Chart
Single function type torque wrench for automobile wheel nut which torque is setted according to car model (torque can not be changed).
Optimum length that does not interfere with the tires and hands.
When preset torque has been reached, a click sound will occur with slight force from the wrench.
12.7

mm Example
1/2

T4MP85 T4MP103

Setting Sq.dr Dimensions (mm) Applicable Model
Models Torque torque Units A Qty./ Weight Case Dimensions
wrench Carton (kg)
（N・m） (mm) B H T L Car Type Across Flat Width
T4MP85 T4MP100 85 N・m 12.7 36.0 30.4 14.0 369 Suzuki / Nissan 19 1 0.68 505 × 97 × 70
T4MP103 T4MP140 103 N・m 12.7 36.0 30.4 14.0 432 Toyota / Daihatsu 21 1 0.80 505 × 97 × 70
T4MP108 T4MP140 108 N・m 12.7 36.0 30.4 14.0 432 Honda / Nissan 19 1 0.80 505 × 97 × 70
● N・m specification Accessory ̗ 0/-: /N
● Torque Accuracy ± 3% Calibration Certificate W/H Traceability 1 ̡
Instruction Manual 1 ̩
Plastic Case 1 ̝ "
Tool for Torque Setting 1

Expire Date of Calibration Certificate

1. When not in use, the product can stay up to 3 years after calibration 2. If the usage started after 3 years from calibration date, it can be used
date mentioned in the certificate. up to 1 year since the first usage or up to 10,000 tightening times.
Repair･Maintenance

■ Inaccuracy may occur if not used for a long time or impropriate use of ■ Torque devices require regular inspection (once a year or 10,000 times
tool. Please contact your distributor regularly for accuracy check. afterwards). Checking service is available with service charge.
■ Please contact your distributor in case of experiencing tool malfunction ■ For more information about tool handling, please contact your distributor.
(no clicking sound, slight force, etc.) ■ Accuracy range after repair will be ± 4%.

Sockets that suitable for tightening car wheel nut!
THIN TYPE WHEEL NUT PROTECTOR SOCKET for IMPACT WRENCH THIN TYPE WHEEL NUT PROTECTOR LONG SOCKET for IMPACT WRENCH

Models 4AP-17N, 4AP-19N, 4AP-21N Models 4AP-17LLN, 4AP-19LLN, 4AP-21LLN

Turn to P372 for more information. Length 85 mm Turn to P373 for more information. Length 131 mm

THIN TYPE WHEEL NUT LONG SOCKET for IMPACT WRENCH THIN TYPE WHEEL NUT LONG SOCKET for IMPACT WRENCH

Models 4A-17LN, 4A-19LN, 4A-21LN, 4A-22LN Models 4A-17LLN, 4A-19LLN, 4A-21LLN, 4A-22LLN

Turn to P374 for more information. Length 100 mm Turn to P375 for more information. Length 130 mm
