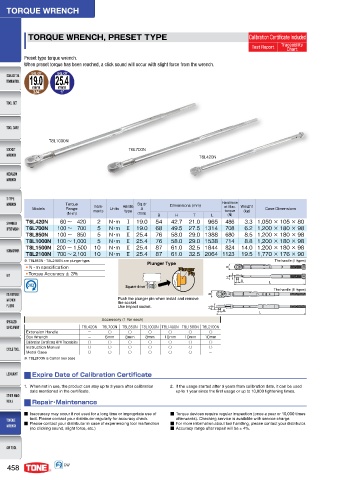

TORQUE WRENCH, PRESET TYPE Calibration Certificate Included

Test Report Traceability
Chart
Preset type torque wrench.
When preset torque has been reached, a click sound will occur with slight force from the wrench.

19.0 25.4
mm mm
3/4 1

T8L1000N
T6L700N
T6L420N

Torque Sq.dr Dimensions (mm) Hand force
Incre-
Models Range ments Units Handle A at Max. Weight Case Dimensions
torque
(kg)
type
(N･m) (mm) B H T L (N)
T6L420N 60 ～ 420 2 N・m Ⅰ 19.0 54 42.7 21.0 965 486 3.3 1,050 × 105 × 80
T6L700N 100 ～ 700 5 N・m Ⅱ 19.0 68 49.5 27.5 1314 708 6.2 1,200 × 180 × 98
T8L850N 100 ～ 850 5 N・m Ⅱ 25.4 76 58.0 29.0 1388 680 8.5 1,200 × 180 × 98
T8L1000N 100 ～ 1,000 5 N・m Ⅱ 25.4 76 58.0 29.0 1538 714 8.8 1,200 × 180 × 98
T8L1500N 200 ～ 1,500 10 N・m Ⅱ 25.4 87 61.0 32.5 1844 824 14.0 1,200 × 180 × 98
T8L2100N 700 ～ 2,100 10 N・m Ⅱ 25.4 87 61.0 32.5 2064 1123 19.5 1,770 × 176 × 90
※ T8L850N - T8L2100N are plunger type. Plunger Type The handle (I types)
● N・m specification 1MVOHFS
● Torque Accuracy ± 3% 1JO #
5
" -
Square drive
)
The handle (II types)
#
Push the plunger pin when install and remove
the socket.
Use impact socket. ) 5
"
-
Accessory (1 for each)
T6L420N T6L700N T8L850N T8L1000N T8L1400N T8L1500N T8L2100N
Extension Handle － ○ ○ ○ ○ ○ ○
Box Wrench － 8mm 8mm 8mm 10mm 10mm 10mm
Calibration Certificate W/H Traceability ○ ○ ○ ○ ○ ○ ○
Instruction Manual ○ ○ ○ ○ ○ ○ ○
Metal Case ○ ○ ○ ○ ○ ○ －
※ T8L2100N is Carton box case

Expire Date of Calibration Certificate

1. When not in use, the product can stay up to 3 years after calibration 2. If the usage started after 3 years from calibration date, it can be used
date mentioned in the certificate. up to 1 year since the first usage or up to 10,000 tightening times.
Repair･Maintenance

■ Inaccuracy may occur if not used for a long time or impropriate use of ■ Torque devices require regular inspection (once a year or 10,000 times
tool. Please contact your distributor regularly for accuracy check. afterwards). Checking service is available with service charge.
■ Please contact your distributor in case of experiencing tool malfunction ■ For more information about tool handling, please contact your distributor.
(no clicking sound, slight force, etc.) ■ Accuracy range after repair will be ± 4%.
