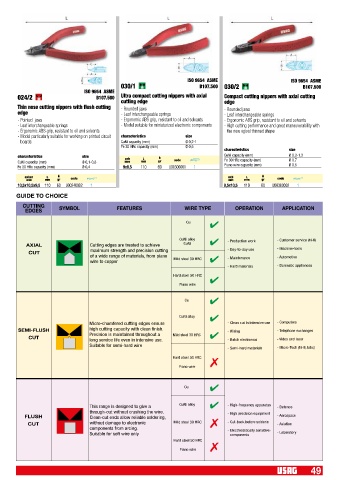

ISO 9654 ASME ISO 9654 ASME
030/1 B107.500 030/2 B107.500
ISO 9654 ASME
024/2 B107.500 Ultra compact cutting nippers with axial Compact cutting nippers with axial cutting
cutting edge edge
Thin nose cutting nippers with flush cutting - Rounded jaws - Rounded jaws
edge - Leaf interchangeable springs - Leaf interchangeable springs
- Pointed jaws - Ergonomic ABS grip, resistant to oil and solvants - Ergonomic ABS grip, resistant to oil and solvants
- Leaf interchangeable springs - Model suitable for miniaturized electronic components - High cutting performance and great maneuverability with
- Ergonomic ABS grip, resistant to oil and solvants the new ogival thinned shape
- Model particularly suitable for working on printed circuit characteristics size
boards CuNi capacity (mm) Ø 0,2-1
Fe 30 HRc capacity (mm) Ø 0,5
characteristics size
characteristics size axb L CuNi capacity (mm) Ø 0,3-1,3
a
code
CuNi capacity (mm) Ø 0,1-0,8 mm mm gr Cod. Q.tà x conf. € Fe 30 HRc capacity (mm) Ø 0.7
Ø 0,5
Piano wire capacity (mm)
Fe 30 HRc capacity (mm) Ø 0,4 9x8,5 110 60 U00300001 1
axbxc L code Q.tà x conf. € axb L code Q.tà x conf. €
a
Cod.
Cod.
a
mm mm gr mm mm gr
10,5x10,5x9,5 110 60 U00240002 1 9,5x10,5 110 60 U00300002 1
GUIDE TO CHOICE
CUTTING SYMBOL FEATURES WIRE TYPE OPERATION APPLICATION
EDGES
Cu
CuNi alloy - Production work - Customer service (hi-fi)
AXIAL Cutting edges are treated to achieve CuNi - Machine-tools
CUT maximum strength and precision cutting - Day-to-day use - Automotive

of a wide range of materials, from piano
wire to copper Mild steel 30 HRC - Maintenance
- Hard materials - Domestic appliances
Hard steel 50 HRC
Piano wire

Cu

CuNi alloy
Micro-chamfered cutting edges ensure - Clean cut in intensive use - Computers
SEMI-FLUSH high cutting capacity with clean finish. - Wiring - Telephone exchanges
Precision is maintained throughout a Mild steel 30 HRC
CUT long service life even in intensive use. - Batch electronics - Video and laser
Suitable for semi-hard wire
- Semi-hard materials - Micro-Tech (hi-fi, labs)
Hard steel 50 HRC
Piano wire

Cu

This range is designed to give a CuNi alloy - High-frequency apparatus - Defence
through-cut without crushing the wire. - High precision equipment
FLUSH Clean-cut ends allow reliable soldering, - Aerospace
CUT without damage to electronic Mild steel 30 HRC - Cut-back before solderin - Aviation
components from arcing. - Electrostatically sensitive-
Suitable for soft wire only components - Laboratory
Hard steel 50 HRC
Piano wire
