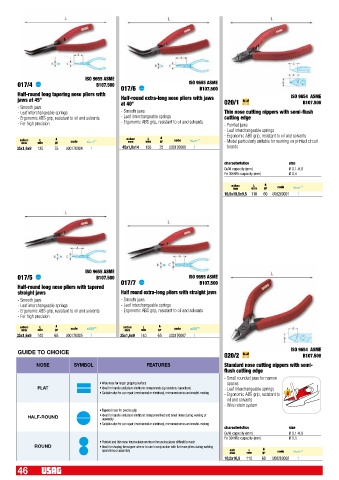

Page 48 - USAG2021

ISO 9655 ASME
017/4 B107.500 017/6 ISO 9655 ASME
B107.500
Half-round long tapering nose pliers with ISO 9654 ASME
jaws at 45° Half-round extra-long nose pliers with jaws 020/1 B107.500
at 40°
- Smooth jaws
- Leaf interchangeable springs - Smooth jaws Thin nose cutting nippers with semi-flush
- Ergonomic ABS grip, resistant to oil and solvants - Leaf interchangeable springs cutting edge
- For high precision - Ergonomic ABS grip, resistant to oil and solvants - Pointed jaws
- Leaf interchangeable springs
- Ergonomic ABS grip, resistant to oil and solvants
a
axbxc L Cod. Q.tà x conf. € axbxc L gr Cod. Q.tà x conf. € - Model particularly suitable for working on printed circuit
code
a
mm mm gr code mm mm
35x1,6x9 135 75 U00170004 1 45x1,6x14 155 75 U00170006 1 boards
characteristics size
CuNi capacity (mm) Ø 0,1-0,8
Fe 30 HRc capacity (mm) Ø 0,4
axbxc L code Q.tà x conf. €
Cod.
a
mm mm gr
10,5x10,5x9,5 110 60 U00200001 1

ISO 9655 ASME
017/5 B107.500 ISO 9655 ASME
Half-round long nose pliers with tapered 017/7 B107.500
straight jaws Half round extra-long pliers with straight jaws
- Smooth jaws - Smooth jaws
- Leaf interchangeable springs - Leaf interchangeable springs
- Ergonomic ABS grip, resistant to oil and solvants - Ergonomic ABS grip, resistant to oil and solvants
- For high precision
axbxc L Cod. Q.tà x conf. € axbxc L Cod. Q.tà x conf. €
a
a
mm mm gr code mm mm gr code
35x1,6x9 140 65 U00170005 1 35x1,6x9 140 65 U00170007 1
GUIDE TO CHOICE ISO 9654 ASME
020/2 B107.500
NOSE SYMBOL FEATURES Standard nose cutting nippers with semi-
flush cutting edge
- Small rounded jaws for narrow
• Wide nose for larger gripping surface spaces
FLAT • Ideal for handle and place electronic components (eg resistors, capacitors) - Leaf interchangeable springs
• Suitable also for car repair (mechanical or electrical), micromechanics and model-making - Ergonomic ABS grip, resistant to
oil and solvants
- Wire retain system
• Tapered nose for precise grip
HALF-ROUND • Ideal for handle and place electronic component feet and small items during welding or
assembly
• Suitable also for car repair (mechanical or electrical), micromechanics and model-making
characteristics size
CuNi capacity (mm) Ø 0,1-0,9
Fe 30 HRc capacity (mm) Ø 0,5
• Pointed and thin nose for precision works or for use in places difficult to reach
ROUND • Ideal for shaping the copper wire or to use in conjunction with flat-nose pliers during welding
operations or assembly axb L code Q.tà x conf. €
a
Cod.
mm mm gr
10,5x10,5 110 60 U00200002 1
46
