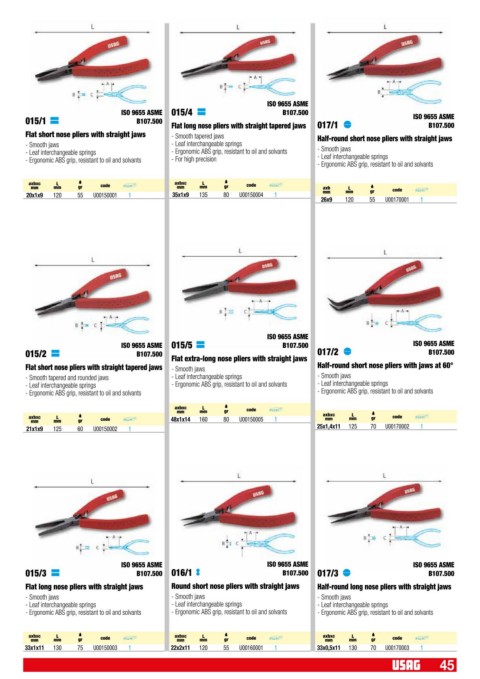

P. 47

ISO 9655 ASME
                               ISO 9655 ASME  015/4                    B107.500
       015/1                       B107.500  Flat long nose pliers with straight tapered jaws  017/1    ISO 9655 ASME
                                                                                                           B107.500
       Flat short nose pliers with straight jaws  - Smooth tapered jaws         Half-round short nose pliers with straight jaws
       - Smooth jaws                        - Leaf interchangeable springs
       - Leaf interchangeable springs       - Ergonomic ABS grip, resistant to oil and solvants  - Smooth jaws
                                                                                - Leaf interchangeable springs
       - Ergonomic ABS grip, resistant to oil and solvants  - For high precision
                                                                                - Ergonomic ABS grip, resistant to oil and solvants
        axbxc  L          code  Q.tà x conf.  €  axbxc  L     Cod.  Q.tà x conf.  €
                                                                    a
                                a
                          Cod.
                                                              code
         mm   mm    gr                       mm    mm    gr                      axb   L     gr    code  Q.tà x conf.  €
                                                                                                   Cod.
                                                                                                        a
         20x1x9  120  55   U00150001  1      35x1x9  135  80   U00150004  1      mm    mm
                                                                                 26x9  120   55   U00170001  1













                                                                   ISO 9655 ASME
                               ISO 9655 ASME  015/5                    B107.500                         ISO 9655 ASME
       015/2                       B107.500  Flat extra-long nose pliers with straight jaws  017/2         B107.500
       Flat short nose pliers with straight tapered jaws  - Smooth jaws         Half-round short nose pliers with jaws at 60°
       - Smooth tapered and rounded jaws    - Leaf interchangeable springs      - Smooth jaws
       - Leaf interchangeable springs       - Ergonomic ABS grip, resistant to oil and solvants  - Leaf interchangeable springs
       - Ergonomic ABS grip, resistant to oil and solvants                      - Ergonomic ABS grip, resistant to oil and solvants

                                            axbxc  L          Cod.  Q.tà x conf.  €
                                                                    a
                                                              code
                                             mm    mm    gr
                                                                                        L
                                                                                                   Cod.
                                                                                                        a
        axbxc  L          code  Q.tà x conf.  €   48x1x14  160  80   U00150005  1  axbxc  mm  gr  code  Q.tà x conf.  €
                          Cod.
                                a
                                                                                  mm
         mm   mm    gr
         21x1x9  125  60   U00150002  1                                         25x1,4x11   125  70   U00170002  1










                               ISO 9655 ASME                       ISO 9655 ASME                        ISO 9655 ASME
       015/3                       B107.500  016/1                     B107.500 017/3                      B107.500
       Flat long nose pliers with straight jaws  Round short nose pliers with straight jaws  Half-round long nose pliers with straight jaws
       - Smooth jaws                        - Smooth jaws                       - Smooth jaws
       - Leaf interchangeable springs       - Leaf interchangeable springs      - Leaf interchangeable springs
       - Ergonomic ABS grip, resistant to oil and solvants  - Ergonomic ABS grip, resistant to oil and solvants  - Ergonomic ABS grip, resistant to oil and solvants


        axbxc  L          Cod.  Q.tà x conf.  €  axbxc  L     Cod.  Q.tà x conf.  €  axbxc  L      Cod.  Q.tà x conf.  €
                                                                                                        a
                                a
                                                                    a
         mm   mm    gr    code               mm    mm    gr   code                mm    mm   gr   code
        33x1x11  130  75   U00150003  1     22x2x11  120  55   U00160001  1     33x0,5x11   130  70   U00170003  1
                                                                                                              45
