Page 221 - USAG2021

3

MODULES

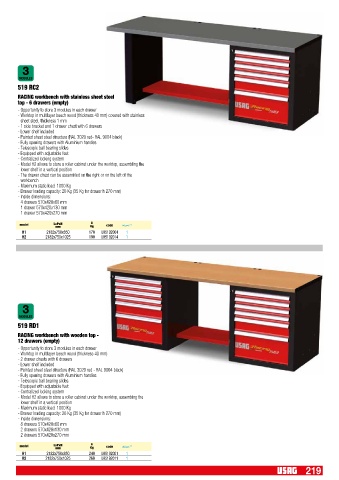

519 RC2
RACING workbench with stainless sheet steel
top - 6 drawers (empty)
- Opportunity to store 3 modules in each drawer
- Worktop in multilayer beech wood (thickness 40 mm) covered with stainless
sheet steel, thickness 1 mm
- 1 side bracket and 1 drawer chest with 6 drawers
- Lower shelf included
- Painted sheet steel structure (RAL 3020 red- RAL 9004 black)
- Fully opening drawers with Aluminium handles
- Telescopic ball bearing slides
- Equipped with adjustable feet
- Centralized locking system
- Model H2 allows to store a roller cabinet under the worktop, assembling the
lower shelf in a vertical position
- The drawer chest can be assembled on the right or on the left of the
workbench
- Maximum static load: 1000 Kg
- Drawer loading capacity: 20 Kg (35 Kg for drawer h 270 mm)
- Inside dimensions:
4 drawers 570x420x60 mm
1 drawer 570x420x130 mm
1 drawer 570x420x270 mm

a
model LxPxH Cod. Q.tà x conf. €
code
mm Kg
H1 2182x750x850 170 U05192004 1
H2 2182x750x1025 190 U05192014 1

3

MODULES
519 RD1

RACING workbench with wooden top -
12 drawers (empty)
- Opportunity to store 3 modules in each drawer
- Worktop in multilayer beech wood (thickness 40 mm)
- 2 drawer chests with 6 drawers
- Lower shelf included
- Painted sheet steel structure (RAL 3020 red - RAL 9004 black)
- Fully opening drawers with Aluminium handles
- Telescopic ball bearing slides
- Equipped with adjustable feet
- Centralized locking system
- Model H2 allows to store a roller cabinet under the worktop, assembing the
lower shelf in a vertical position
- Maximum static load: 1000 Kg
- Drawer loading capacity: 20 Kg (35 Kg for drawer h 270 mm)
- Inside dimensions:
8 drawers 570x420x60 mm
2 drawers 570x420x130 mm
2 drawers 570x420x270 mm
model LxPxH Cod. Q.tà x conf. €
a
code
mm Kg
H1 2182x750x850 240 U05192001 1
H2 2182x750x1025 260 U05192011 1
219
