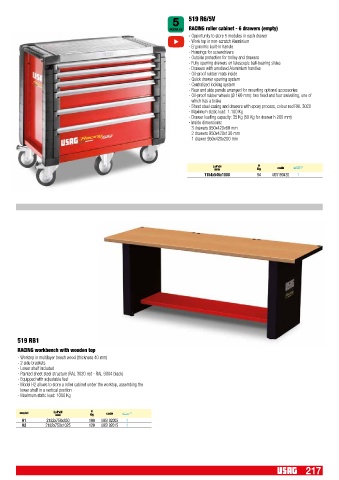

5 519 R6/5V

MODULES RACING roller cabinet - 6 drawers (empty)
- Opportunity to store 5 modules in each drawer
- Work top in non-scratch Aluminium
- Ergonomic built-in handle
- Housings for screwdrivers
- Outside protection for trolley and drawers
- Fully opening drawers on telescopic ball-bearing slides
- Drawers with anodized Aluminium handles
- Oil-proof rubber mats inside
- Quick drawer opening system
- Centralized locking system
- Rear and side panels arranged for mounting optional accessories
- Oil-proof rubber wheels (Ø 160 mm): two fixed and four swivelling, one of
which has a brake
- Sheet steel casing and drawers with epoxy process, colour red RAL 3020
- Maximum static load: 1.100 Kg
- Drawer loading capacity: 35 Kg (50 Kg for drawer h 200 mm)
- Inside dimensions:
3 drawers 950x420x60 mm
2 drawers 950x420x130 mm
1 drawer 950x420x200 mm

LxPxH Cod. Q.tà x conf. €
a
mm Kg code
1154x546x1000 94 U05190420 1

519 RB1
RACING workbench with wooden top
- Worktop in multilayer beech wood (thickness 40 mm)
- 2 side brackets
- Lower shelf included
- Painted sheet steel structure (RAL 3020 red - RAL 9004 black)
- Equipped with adjustable feet
- Model H2 allows to store a roller cabinet under the worktop, assembing the
lower shelf in a vertical position
- Maximum static load: 1000 Kg

a
model LxPxH Cod. Q.tà x conf. €
code
mm Kg
H1 2182x750x850 100 U05192005 1
H2 2182x750x1025 120 U05192015 1
