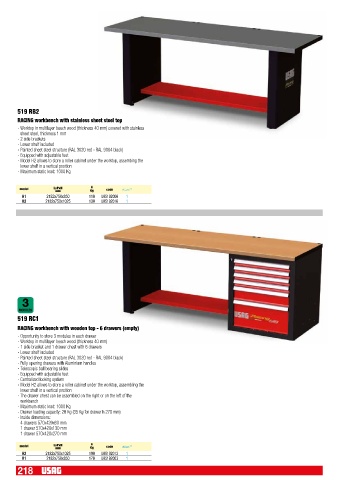

Page 220 - USAG2021

519 RB2
RACING workbench with stainless sheet steel top
- Worktop in multilayer beech wood (thickness 40 mm) covered with stainless
sheet steel, thickness 1 mm
- 2 side brackets
- Lower shelf included
- Painted sheet steel structure (RAL 3020 red - RAL 9004 black)
- Equipped with adjustable feet
- Model H2 allows to store a roller cabinet under the worktop, assembing the
lower shelf in a vertical position
- Maximum static load: 1000 Kg

a
model LxPxH Cod. Q.tà x conf. €
code
mm Kg
H1 2182x750x850 110 U05192006 1
H2 2182x750x1025 130 U05192016 1

3

MODULES
519 RC1
RACING workbench with wooden top - 6 drawers (empty)
- Opportunity to store 3 modules in each drawer
- Worktop in multilayer beech wood (thickness 40 mm)
- 1 side bracket and 1 drawer chest with 6 drawers
- Lower shelf included
- Painted sheet steel structure (RAL 3020 red - RAL 9004 black)
- Fully opening drawers with Aluminium handles
- Telescopic ball bearing slides
- Equipped with adjustable feet
- Centralized locking system
- Model H2 allows to store a roller cabinet under the worktop, assembling the
lower shelf in a vertical position
- The drawer chest can be assembled on the right or on the left of the
workbench
- Maximum static load: 1000 Kg
- Drawer loading capacity: 20 Kg (35 Kg for drawer h 270 mm)
- Inside dimensions:
4 drawers 570x420x60 mm
1 drawer 570x420x130 mm
1 drawer 570x420x270 mm

model LxPxH Cod. Q.tà x conf. €
a
code
mm Kg
H2 2182x750x1025 190 U05192013 1
H1 2182x750x850 170 U05192003 1
218
