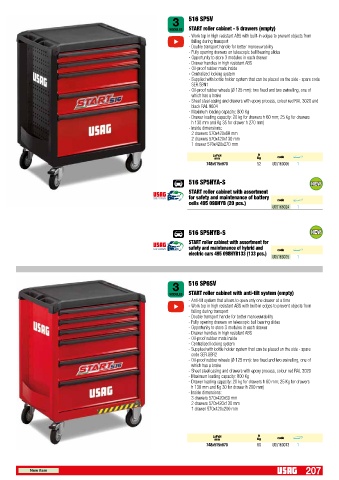

Page 209 - USAG2021

3 516 SP5V

MODULES START roller cabinet - 5 drawers (empty)
- Work top in high resistant ABS with built-in edges to prevent objects from
falling during transport
- Double transport handle for better manoeuvrability
- Fully opening drawers on telescopic ball bearing slides
- Opportunity to store 3 modules in each drawer
- Drawer handles in high resistant ABS
- Oil-proof rubber mats inside
- Centralized locking system
- Supplied with bottle holder system that can be placed on the side - spare code
SER.SBN1
- Oil-proof rubber wheels (Ø 125 mm): two fixed and two swivelling, one of
which has a brake
- Sheet steel casing and drawers with epoxy process, colour red RAL 3020 and
black RAL 9004
- Maximum loading capacity: 800 Kg
- Drawer loading capacity: 20 kg for drawers h 60 mm; 25 Kg for drawers
h 130 mm and Kg 35 for drawer h 270 mm)
- Inside dimensions:
2 drawers 570x420x60 mm
2 drawers 570x420x130 mm
1 drawer 570x420x270 mm

LxPxH Cod. Q.tà x conf. €
a
mm Kg code
748x515x970 52 U05160005 1
516 SP5HYA-S
START roller cabinet with assortment
FOR HYBRID for safety and maintenance of battery code Q.tà x conf. €
AND EL ECTRIC
Cod.
a
cells 495 098HYB (20 pcs.) Colore da utilizzare per codici novità
CMYK: 45-0-100-0
U05168024 1
516 SP5HYB-S
START roller cabinet with assortment for
a
FOR HYBRID safety and maintenance of hybrid and
Cod.
AND EL ECTRIC code Q.tà x conf. €
electric cars 495 098HYB133 (133 pcs.) CMYK: 45-0-100-0
Colore da utilizzare per codici novità
U05168025 1
3 516 SP6SV

MODULES START roller cabinet with anti-tilt system (empty)
- Anti-tilt system that allows to open only one drawer at a time
- Work top in high resistant ABS with built-in edges to prevent objects from
falling during transport
- Double transport handle for better manoeuvrability
- Fully opening drawers on telescopic ball bearing slides
- Opportunity to store 3 modules in each drawer
- Drawer handles in high resistant ABS
- Oil-proof rubber mats inside
- Centralized locking system
- Supplied with bottle holder system that can be placed on the side - spare
code SER.SBR2
- Oil-proof rubber wheels (Ø 125 mm): two fixed and two swivelling, one of
which has a brake
- Sheet steel casing and drawers with epoxy process, colour red RAL 3020
- Maximum loading capacity: 800 Kg
- Drawer loading capacity: 20 kg for drawers h 60 mm; 25 Kg for drawers
h 130 mm and Kg 30 for drawer h 200 mm)
- Inside dimensions:
3 drawers 570x420x60 mm
2 drawers 570x420x130 mm
1 drawer 570x420x200 mm

LxPxH code Q.tà x conf. €
a
Cod.
mm Kg
748x515x970 60 U05160013 1

207
New item
