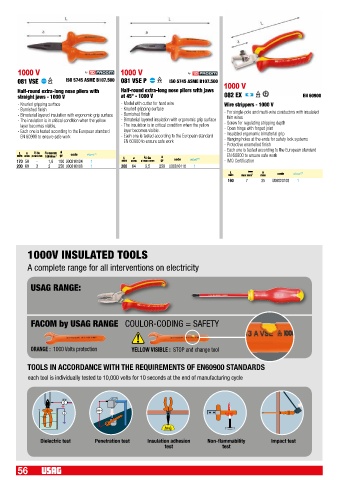

081 VSE ISO 5745 ASME B107.500 081 VSE P ISO 5745 ASME B107.500
Half-round extra-long nose pliers with Half-round extra-long nose pliers with jaws
straight jaws - 1000 V at 45° - 1000 V 082 EX EN 60900
- Knurled gripping surface - Model with cutter for hard wire Wire strippers - 1000 V
- Burnished finish - Knurled gripping surface - For single-pole and multi-wire conductors with insulated
- Bimaterial layered insulation with ergonomic grip surface - Burnished finish thin wires
- The insulation is in critical condition when the yellow - Bimaterial layered insulation with ergonomic grip surface - Screw for regulating stripping depth
layer becomes visible. - The insulation is in critical condition when the yellow - Open hinge with forged joint
- Each one is tested according to the European standard layer becomes visible. - Insulated ergonomic bimaterial grip
EN 60900 to ensure safe work - Each one is tested according to the European standard - Hanging holes at the ends for safety lock systems
EN 60900 to ensure safe work
- Protective enamelled finish
- Each one is tested according to the European standard
L a Cu ø max mm code Q.tà x conf. €
Cod.
a
mm mm ø max mm 1400 N/mm 2 gr L a Cu EN 60900 to ensure safe work
a
code
170 50 - 1,6 180 U00810104 1 mm mm ø max mm gr Cod. Q.tà x conf. € - IMQ Certification
200 69 3 2 250 U00810108 1 200 64 3,5 250 U00810118 1
a
L k a Cod. Q.tà x conf. €
mm max mm 2 mm code
160 7 35 U00820103 1

1000V INSULATED TOOLS

A complete range for all interventions on electricity

USAG RANGE:

FACOM by USAG RANGE COULOR-CODING = SAFETY

ORANGE : 1000 Volts protection YELLOW VISIBLE : STOP and change tool

TOOLS IN ACCORDANCE WITH THE REQUIREMENTS OF EN60900 STANDARDS

each tool is individually tested to 10,000 volts for 10 seconds at the end of manufacturing cycle

Dielectric test Penetration test Insulation adhesion Non-flammability Impact test
test test

56
