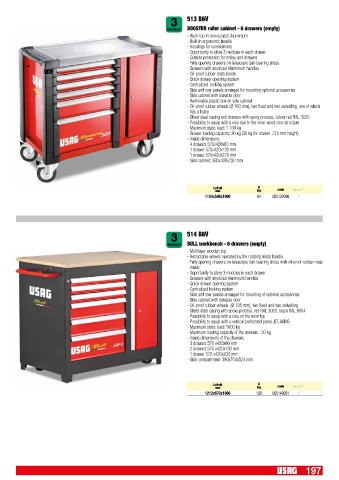

3 513 B6V

MODULES BOOSTER roller cabinet - 6 drawers (empty)
- Work top in non-scratch Aluminium
- Built-in ergonomic handle
- Housings for screwdrivers
- Opportunity to store 3 modules in each drawer
- Outside protection for trolley and drawers
- Fully opening drawers on telescopic ball-bearing slides
- Drawers with anodized Aluminium handles
- Oil-proof rubber mats inside
- Quick drawer openinig system
- Centralized locking system
- Side and rear panels arranged for mounting optional accessories
- Side cabinet with lockable door
- Removable plastic box on side cabinet
- Oil-proof rubber wheels (Ø 160 mm), two fixed and two swivelling, one of which
has a brake
- Sheet steel casing and drawers with epoxy process, colour red RAL 3020
- Possibility to equip with a vice due to the inner wood core structure
- Maximum static load: 1.100 kg
- Drawer loading capacity: 20 kg (35 kg for drawer 270 mm height)
- Inside dimensions:
4 drawers 570x420x60 mm
1 drawer 570x420x130 mm
1 drawer 570x420x270 mm
- Side cabinet: 380x400x720 mm

LxPxH Cod. Q.tà x conf. €
a
mm Kg code
1154x546x1000 94 U05130096 1

3 514 B6V

MODULES BULL workbench - 6 drawers (empty)
- Multilayer wooden top
- Retractable wheels operated by the rotating metal handle
- Fully opening drawers on telescopic ball-bearing slides with oil-proof rubber mats
inside
- Opportunity to store 3 modules in each drawer
- Drawers with anodized Aluminum handles
- Quick drawer opening system
- Centralized locking system
- Side and rear panels arranged for mounting of optional accessories
- Side cabinet with lockable door
- Oil-proof rubber wheels (Ø 125 mm), two fixed and two swivelling
- Sheet steel casing with epoxy process, red RAL 3020, black RAL 9004
- Possibility to equip with a vice on the work top
- Possibility to equip with a vertical perforated panel JET.A6M5
- Maximum static load: 1000 kg
- Maximum loading capacity of the drawers : 20 kg
- Inside dimensions of the drawers:
3 drawers 570 x420x60 mm
2 drawers 570 x420x130 mm
1 drawer 570 x420x200 mm
- Side compartment: 380x704x524 mm

LxPxH Cod. Q.tà x conf. €
a
mm Kg code
1212x670x1000 128 U05140001 1
