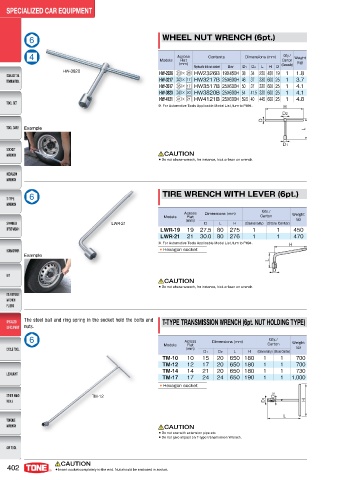

6 WHEEL NUT WRENCH (6pt.)

4 Across Contents Dimensions (mm) Qty./ Weight
Models
Carton
Flat
(mm) (Generally) (kg)
Riyokuchi foil nut socket Bar D1 D2 L H D
HW-3820 HW-2326 23 × 26 HW2326B 19X450H 38 34 250 450 19 1 1.8
HW-3217 32 × 17 HW3217B 25X600H 46 37 330 600 25 1 3.7
HW-3517 35 × 17 HW3517B 25X600H 50 37 330 600 25 1 4.1
HW-3820 38 × 20 HW3820B 25X600H 54 41.5 330 600 25 1 4.1
HW-4121 41 × 21 HW4121B 25X600H 59.5 40 445 600 25 1 4.8
※ For Automotive Tools Applicable Model List, turn to P494.

Example

CAUTION
● Do not abuse wrench, for instance, kick or lean on wrench.

6 TIRE WRENCH WITH LEVER (6pt.)

Across Dimensions (mm) Qty./ Weight
Models Flat Carton (g)
LWR-21 (mm) D L H (Generally) (Store Center)
LWR-19 19 27.5 80 275 1 1 450
LWR-21 21 30.0 80 276 1 1 470
※ For Automotive Tools Applicable Model List, turn to P494.
● Hexagon socket
Example

CAUTION
● Do not abuse wrench, for instance, kick or lean on wrench.

The steel ball and ring spring in the socket hold the bolts and T-TYPE TRANSMISSION WRENCH (6pt. NUT HOLDING TYPE)
nuts.
6 Across Dimensions (mm) Qty./
Models Flat Carton Weight
(mm) (g)
D1 D2 L H (Generally) (Store Center)
TM-10 10 15 20 650 180 1 1 700
TM-12 12 17 20 650 180 1 1 700
TM-14 14 21 20 650 180 1 1 730
TM-17 17 24 24 650 190 1 1 1,000
● Hexagon socket
TM-12

CAUTION
● Do not use with extension pipe etc.
● Do not give impact on T-type transmission Wrench.

CAUTION
402 ● Insert socket completely to the end. Nut should be enclosed in socket.
