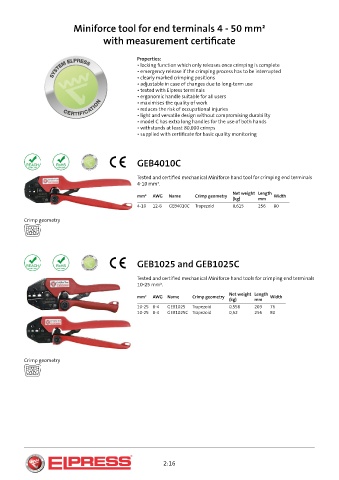

Miniforce tool for end terminals 4 - 50 mm²

with measurement certificate

Properties:
• locking function which only releases once crimping is complete
• emergency release if the crimping process has to be interrupted
• clearly marked crimping positions
• adjustable in case of changes due to long-term use
• tested with Elpress terminals
• ergonomic handle suitable for all users
• maximises the quality of work
• reduces the risk of occupational injuries
• light and versatile design without compromising durability
• model C has extra long handles for the use of both hands
• withstands at least 80,000 crimps

• supplied with certificate for basic quality monitoring

GEB4010C

Tested and certified mechanical Miniforce hand tool for crimping end terminals
4-10 mm².
Net weight Length
mm² AWG Name Crimp geometry Width
(kg) mm
4-10 12-8 GEB4010C Trapezoid 0,615 256 80

Crimp geometry

GEB1025 and GEB1025C

Tested and certified mechanical Miniforce hand tools for crimping end terminals
10-25 mm².
Net weight Length
mm² AWG Name Crimp geometry Width
(kg) mm
10-25 8-4 GEB1025 Trapezoid 0,558 203 76
10-25 8-4 GEB1025C Trapezoid 0,62 256 80

Crimp geometry

2:16
