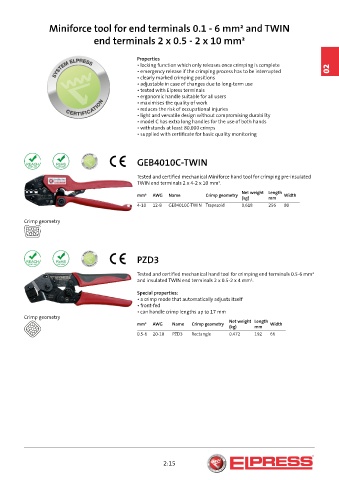

Miniforce tool for end terminals 0.1 - 6 mm² and TWIN

end terminals 2 x 0.5 - 2 x 10 mm²

Properties
• locking function which only releases once crimping is complete
• emergency release if the crimping process has to be interrupted 02
• clearly marked crimping positions
• adjustable in case of changes due to long-term use
• tested with Elpress terminals
• ergonomic handle suitable for all users
• maximises the quality of work
• reduces the risk of occupational injuries
• light and versatile design without compromising durability
• model C has extra long handles for the use of both hands
• withstands at least 80,000 crimps

• supplied with certificate for basic quality monitoring

GEB4010C-TWIN

Tested and certified mechanical Miniforce hand tool for crimping pre-insulated
TWIN end terminals 2 x 4-2 x 10 mm².
Net weight Length
mm² AWG Name Crimp geometry Width
(kg) mm
4-10 12-8 GEB4010C-TWIN Trapezoid 0,618 256 80

Crimp geometry

PZD3

Tested and certified mechanical hand tool for crimping end terminals 0.5-6 mm²
and insulated TWIN end terminals 2 x 0.5-2 x 4 mm².

Special properties:
• a crimp mode that automatically adjusts itself
• front-fed
• can handle crimp lengths up to 17 mm
Crimp geometry
Net weight Length
mm² AWG Name Crimp geometry Width
(kg) mm
0,5-6 20-10 PZD3 Rectangle 0,472 192 66
