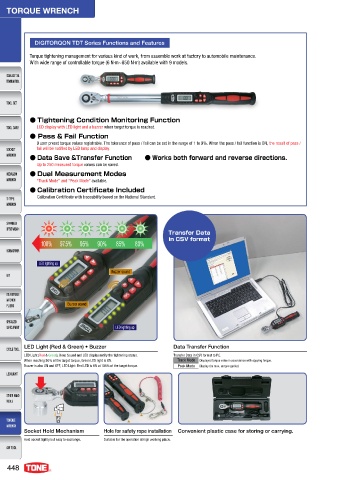

DIGITORQON TDT Series Functions and Features

Torque tightening management for various kind of work, from assemble work at factory to automobile maintenance.
With wide range of controllable torque (6 N·m~850 N·m) available with 9 models.

● Tightening Condition Monitoring Function
LCD display with LED light and a buzzer when target torque is reached.
● Pass & Fail Function
9 user preset torque values registrable. The tolerance of pass / fail can be set in the range of 1 to 9%. When the pass / fail function is ON, the result of pass /
fail will be notified by LED lamp and display.
● Data Save &Transfer Function ● Works both forward and reverse directions.
Up to 250 measured torque values can be saved.
● Dual Measurement Modes
“Track Mode” and “Peak Mode” available.
● Calibration Certificate Included
Calibration Certificate with traceability based on the National Standard.

Transfer Data
in CSV format
100% 97.5% 95% 90% 85% 80%

LED lighting up
Buzzer sound

Buzzer sound

LED lighting up

LED Light (Red & Green) • Buzzer Data Transfer Function
LED Light (Red & Green), Beep Sound and LED display notify the tightening status. Transfer Data in CSV format to PC.
When reaching 80% of the target torque, Green LED light is ON. Track Mode Displayed torque value in accordance with appying torque.
Buzzer is also ON and OFF, LED Light: Red LED is ON at 100% of the target torque. Peak Mode Display the max. torque applied.

Socket Hold Mechanism Hole for safety rope installation Convenient plastic case for storing or carrying.
Hold socket tightly but easy to exchange. Suitable for the operation at high working place.
