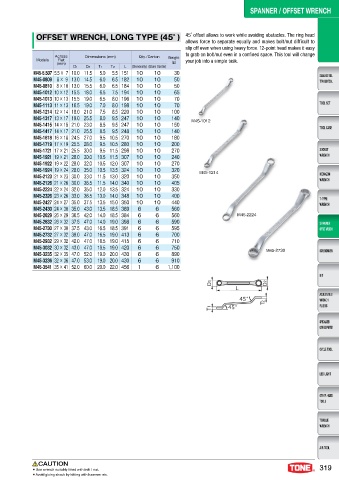

Page 321 - 日本前田TONE

OFFSET WRENCH, LONG TYPE (45° ) 45˚ offset allows to work while avoiding obstacles. The ring head
allows force to separate equally and makes bolt/nut difficult to
slip off even when using heavy force. 12-point head makes it easy
Across Dimensions (mm) Qty./Carton Weight to grab on bolt/nut even in a confined space. This tool will change
Models Flat your job into a simple task.
(mm) (g)
D1 D2 T1 T2 L (Generally) (Store Center)
M45-5.507 5.5× 7 10.0 11.5 5.0 5.5 151 10 10 30
M45-0809 8 × 9 13.0 14.5 6.0 6.5 182 10 10 50
M45-0810 8 × 10 13.0 15.5 6.0 6.5 184 10 10 50
M45-1012 10 × 12 15.5 18.0 6.5 7.5 194 10 10 65
M45-1013 10 × 13 15.5 19.0 6.5 8.0 196 10 10 70
M45-1113 11 × 13 16.5 19.0 7.0 8.0 198 10 10 70
M45-1214 12 × 14 18.0 21.0 7.5 8.5 220 10 10 100
M45-1317 13 × 17 19.0 25.5 8.0 9.5 247 10 10 140 M45-1012
M45-1415 14 × 15 21.0 23.0 8.5 9.5 247 10 10 150
M45-1417 14 × 17 21.0 25.5 8.5 9.5 248 10 10 140
M45-1618 16 × 18 24.5 27.0 9.5 10.5 270 10 10 180
M45-1719 17 × 19 25.5 28.0 9.5 10.5 280 10 10 200
M45-1721 17 × 21 25.5 30.0 9.5 11.5 298 10 10 270
M45-1921 19 × 21 28.0 30.0 10.5 11.5 307 10 10 240
M45-1922 19 × 22 28.0 32.0 10.5 12.0 307 10 10 270
M45-1924 19 × 24 28.0 35.0 10.5 13.5 324 10 10 320 M45-1214
M45-2123 21 × 23 30.0 33.0 11.5 13.0 320 10 10 350
M45-2126 21 × 26 30.0 36.5 11.5 14.0 340 10 10 405
M45-2224 22 × 24 32.0 35.0 12.0 13.5 324 10 10 330
M45-2326 23 × 26 33.0 36.5 13.0 14.0 348 10 10 400
M45-2427 24 × 27 35.0 37.5 13.5 15.0 350 10 10 440
M45-2430 24 × 30 35.0 43.0 13.5 18.5 389 6 6 560
M45-2629 26 × 29 36.5 42.0 14.0 18.5 384 6 6 560 M45-2224
M45-2632 26 × 32 37.5 47.0 14.0 19.0 398 6 6 590
M45-2730 27 × 30 37.5 43.0 16.5 18.5 391 6 6 595
M45-2732 27 × 32 39.0 47.0 16.5 19.0 413 6 6 700
M45-2932 29 × 32 42.0 47.0 18.5 19.0 415 6 6 710
M45-3032 30 × 32 43.0 47.0 18.5 19.0 420 6 6 750 M45-2730
M45-3235 32 × 35 47.0 52.0 19.0 20.0 430 6 6 890
M45-3236 32 × 36 47.0 53.0 19.0 20.0 430 6 6 910
M45-3541 35 × 41 52.0 60.0 20.0 22.0 456 1 6 1,100

CAUTION
● Use wrench suitably fitted with bolt / nut. 319
● Avoid giving shock by hitting with hammer etc.
