For impact

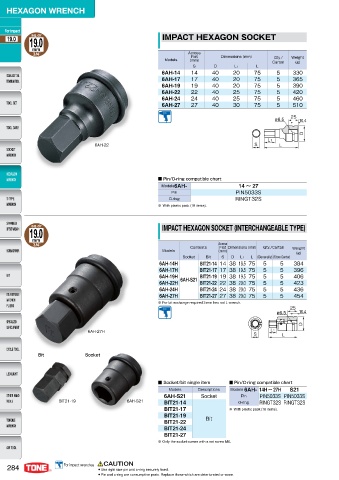

19.0 19.0 IMPACT HEXAGON SOCKET
mm
3/4 Across Dimensions (mm)
Flat
Qty./
Models (mm) Carton Weight
(g)
S D L1 L
6AH-14 14 40 20 75 5 330
6AH-17 17 40 20 75 5 365
6AH-19 19 40 20 75 5 390
6AH-22 22 40 25 75 5 420
6AH-24 24 40 25 75 5 460
6AH-27 27 40 30 75 5 510

ø6.5 10.4

6AH-22

■ Pin/O-ring compatible chart
Models6AH- 14 ～ 27
Pin PIN5033S
O-ring RINGT32S
※ With plastic pack (10 items).

19.0 IMPACT HEXAGON SOCKET (INTERCHANGEABLE TYPE)

mm
3/4 Contents Across Qty./Carton
Flat Dimensions (mm)
Models (mm) Weight
(g)
Socket Bit S D L1 L (Generally) (Store Center)
6AH-14H BIT21-14 14 38 18.5 75 5 5 384
6AH-17H BIT21-17 17 38 19.5 75 5 5 396
6AH-19H BIT21-19 19 38 19.5 75 5 5 406
6AH-22H 6AH-S21 BIT21-22 22 38 20.0 75 5 5 423
6AH-24H BIT21-24 24 38 20.0 75 5 5 436
6AH-27H BIT21-27 27 38 20.0 75 5 5 454
※ For bit exchange，required 3 mm hex rod L wrench.
ø6.5 10.4

6AH-27H

Bit Socket

■ Socket/bit single item ■ Pin/O-ring compatible chart
Models Descriptions Models 6AH- 14H ～ 27H S21
6AH-S21 Socket Pin PIN5033S PIN5033S
BIT21-19 6AH-S21 BIT21-14 O-ring RINGT32S RINGT32S
BIT21-17 ※ With plastic pack (10 items).
BIT21-19 Bit
BIT21-22
BIT21-24
BIT21-27
※ Only the socket comes with a set screw M6.

CAUTION
284 'PS JNQBDU XSFODIFT ● Use right size pin and o-ring securely fixed.
● Pin and o-ring are consumptive parts. Replace those which are deteriorated or worm.
