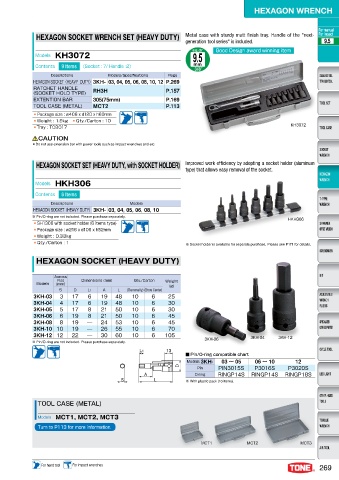

Page 271 - 日本前田TONE

For manual
HEXAGON SOCKET WRENCH SET (HEAVY DUTY) Metal case with sturdy matt finish tray. Handle of the "next- For impact
generation tool series" is included. 9.5

Models KH3072 9.5 Good Design award winning item

Contents 9 Items （Socket :７/ Handle :2） mm
3/8
Descriptions Models/Specifications Page
HEXAGON SOCKET（HEAVY DUTY） 3KH- 03, 04, 05, 06, 08, 10, 12 P.269
RATCHET HANDLE RH3H P.157
(SOCKET HOLD TYPE)
EXTENTION BAR 305(75mm) P.169
TOOL CASE (METAL) MCT2 P.113
● Package size : w406 x d120 x h60mm
● Weight : 1.9kg ● Qty./Carton : 10
● Tray : TCB017 KH3072

CAUTION
● Do not use extension bar with power tools such as impact wrenches and etc.

HEXAGON SOCKET SET (HEAVY DUTY, with SOCKET HOLDER) Improved work efficiency by adopting a socket holder (aluminum
type) that allows easy removal of the socket.

Models HKH306

Contents 6 Items
Descriptions Models
HEXAGON SOCKET（HEAVY DUTY） 3KH- 03, 04, 05, 06, 08, 10
※ Pin/O-ring are not included. Please purchase separately. HKH306
● SH1306 with socket holder (6 items type)
● Package size : w216 x d106 x h52mm
● Weight : 0.33kg
● Qty./Carton : 1
※ Socket holder is available for separate purchase. Please see P171 for details.

HEXAGON SOCKET (HEAVY DUTY)

Across
Flat Dimensions (mm) Qty./Carton Weight
Models (mm) (g)
S D L1 A L (Generally) (Store Center)
3KH-03 3 17 6 19 48 10 6 25
3KH-04 4 17 6 19 48 10 6 30
3KH-05 5 17 8 21 50 10 6 30
3KH-06 6 19 8 21 50 10 6 45
3KH-08 8 19 — 24 53 10 6 45
3KH-10 10 19 — 26 55 10 6 70
3KH-12 12 22 — 30 60 10 6 105 3KH-04 3KH-12
※ Pin/O-ring are not included. Please purchase separately. 3KH-06

■ Pin/O-ring compatible chart
Models 3KH- 03 ～ 05 06 ～ 10 12
Pin PIN3015S P3016S P3020S
O-ring RINGP14S RINGP14S RINGP18S
※ With plastic pack (10 items).

TOOL CASE (METAL)

Models MCT1, MCT2, MCT3

Turn to P113 for more information.

MCT1 MCT2 MCT3

'PS IBOE UPPM 'PS JNQBDU XSFODIFT
269
