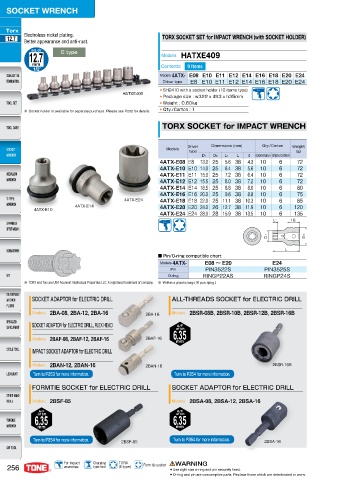

12.7 Electroless nickel plating. TORX SOCKET SET for IMPACT WRENCH (with SOCKET HOLDER)
Better appearance and anti-rust.
12.7 E type Models HATXE409
mm Contents 9 Items
1/2
Models 4ATX- E08 E10 E11 E12 E14 E16 E18 E20 E24
Driver type E8 E10 E11 E12 E14 E16 E18 E20 E24
● SH2410 with a socket holder (10 items type)
HATXE409 ● Package size : w322 x d93 x h35mm
● Weight : 0.80kg
● Qty./Carton : 1
※ Socket holder is available for separate purchase. Please see P202 for details.
TORX SOCKET for IMPACT WRENCH

Driver Dimensions (mm) Qty./Carton Weight
Models
type (g)
D1 D2 L1 L d (Generally) (Store Center)
4ATX-E08 E8 13.0 25 5.6 38 4.3 10 6 72
4ATX-E10 E10 14.0 25 6.4 38 5.6 10 6 72
4ATX-E11 E11 15.0 25 7.2 38 6.4 10 6 72
4ATX-E12 E12 15.5 25 8.0 38 7.2 10 6 72
4ATX-E14 E14 18.5 25 8.8 38 8.0 10 6 80
4ATX-E16 E16 20.0 25 9.6 38 8.8 10 6 75
4ATX-E24 4ATX-E18 E18 22.0 25 11.1 38 10.3 10 6 85
4ATX-E14 4ATX-E20 E20 24.0 26 12.7 38 11.9 10 6 120
4ATX-E10
4ATX-E24 E24 28.0 28 15.9 38 13.5 10 6 135

■ Pin/O-ring compatible chart
Models 4ATX- E08 ～ E20 E24
Pin PIN3522S PIN3525S
O-ring RINGP22AS RINGP24S
※ TORX and Torx are USA Acument Intellectual Properties LLC. A registered trademark of company. ※ Within a plastic bag (10 pcs./pkg.)

SOCKET ADAPTOR for ELECTRIC DRILL ALL-THREADS SOCKET for ELECTRIC DRILL

Models 2BA-08, 2BA-12, 2BA-16 2BA-16 Models 2BSR-08B, 2BSR-10B, 2BSR-12B, 2BSR-16B
SOCKET ADAPTOR for ELECTRIC DRILL, FLEX HEAD

Models 2BAF-08, 2BAF-12, 2BAF-16 2BAF-16 6.35
mm
IMPACT SOCKET ADAPTOR for ELECTRIC DRILL

Models 2BAN-12, 2BAN-16 2BAN-16 2BSR-16B
Turn to P353 for more information. Turn to P354 for more information.

FORMTIE SOCKET for ELECTRIC DRILL SOCKET ADAPTOR for ELECTRIC DRILL

Models 2BSF-85 Models 2BSA-08, 2BSA-12, 2BSA-16

6.35 6.35

mm mm

Turn to P354 for more information. 2BSF-85 Turn to P354 for more information. 2BSA-16

'PS JNQBDU $IBSHJOH 5039 'PSN UJF TPDLFU WARNING
256 XSFODIFT UZQF UPPM & UZQF ● Use right size o-ring and pin securely fixed.
● O-ring and pin are consumptive parts. Replace those which are deteriorated or worn.
