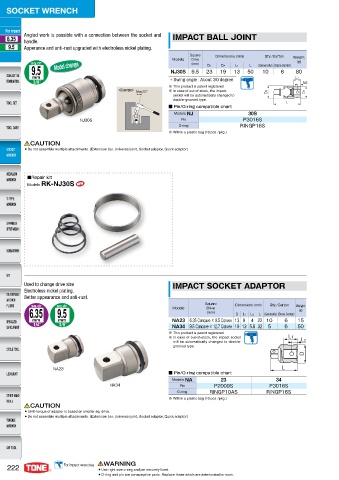

Page 224 - 日本前田TONE

For impact
6.35 Angled work is possible with a connection between the socket and IMPACT BALL JOINT
handle.
9.5 Apperance and anti-rust upgraded with electroless nickel plating.
Square Dimensions (mm) Qty./Carton Weight
Models Drive (g)
(mm)
9.5 NJ30S 9.5 23 19 13 50 (Generally) (Store Center) 80
L
D1
L1
D2
6
10
mm ● Swing angle : About 30 degree
3/8
※ This product is patent registered
<Example> ※ In case of out-of-stock, the impact
socket will be automatically changed to
double-grooved type.
■ Pin/O-ring compatible chart
Models NJ 30S
NJ30S Pin P3016S
O-ring RINGP16S
※ Within a plastic bag (10 pcs./pkg.)
CAUTION
● Do not assemble multiple attachments. (Extension bar, Universal joint, Socket adaptor, Quick adaptor)

■Repair kit
Models RK-NJ30S

Used to change drive size IMPACT SOCKET ADAPTOR
Electroless nickel plating.
Better appearance and anti-rust.
Square Dimensions (mm) Qty./Carton Weight
6.35 9.5 Models Drive D L1 L2 L (Generally) (Store Center) (g)
(mm)
mm mm NA23 6.35 Concave × 9.5 Convex 13 9 4 22 10 6 15
1/4 3/8 NA34 9.5 Concave×12.7 Convex 19 13 5.6 32 5 6 50
※ This product is patent registered
※ In case of out-of-stock, the impact socket
will be automatically changed to double- -
grooved type.

NA23
■ Pin/O-ring compatible chart
Models NA 23 34
NA34 Pin P2009S P3016S
O-ring RINGP10AS RINGP16S
※ Within a plastic bag (10 pcs./pkg.)
CAUTION
● Limit-torque of adaptor is based on smaller sq. drive.
● Do not assemble multiple attachments. (Extension bar, Universal joint, Socket adaptor, Quick adaptor)

WARNING
222 'PS JNQBDU XSFODIFT ● Use right size o-ring and pin securely fixed.
● O-ring and pin are consumptive parts. Replace those which are deteriorated or worn.
