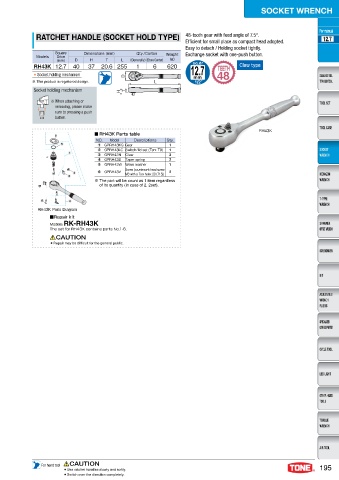

RATCHET HANDLE (SOCKET HOLD TYPE) 48-tooth gear with feed angle of 7.5°. 12.7
Efficient for small place as compact head adopted.
Easy to detach / Holding socket tightly.
Square Dimensions (mm) Qty./Carton Weight Exchange socket with one-push button.
Models Drive
(mm) D H T L (Generally) (Store Center) (g)
RH43K 12.7 40 37 20.6 255 1 6 620 12.7 Claw type
● Socket holding mechanism
mm
※ This product is registered design. 1/2
Socket holding mechanism

˞When attaching or
removing, please make
sure to pressing a push
button.

RH43K
■ RH43K Parts table
NO. Model Descriptions Qty.
● 1 GPRH43KG Gear 1
● 2 GPRH43LC Switch/lid set (Torx T9) 1
● 3 GPRH43N Claw 2
● 4 GPRH43S Taper spring 2
● 5 GPRH43W Wave washer 1
● 6 GPRH43V Screw (countersunk head screw 2
M3 with a Torx holex 20 (T15))
※ The part will be count as 1 item regardless
of its quantity (in case of 2, 2set).

RH43K Parts Diagram
■Repair kit
Models RK-RH43K
The set for RH43K contains parts No.1-6.
CAUTION
● Repair may be difficult for the general public.

'PS IBOE UPPM CAUTION
● Use ratchet handles slowly and softly. 195
● Switch over the direction completely.
