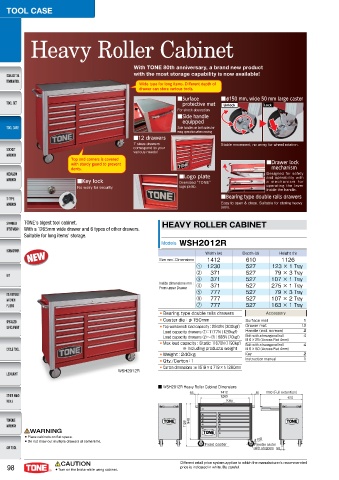

Heavy Roller Cabinet

With TONE 80th anniversary, a brand new product
with the most storage capability is now available!
Wide type for long items. Different depth of
drawer can store various tools.
■ Surface ■φ150 mm, wide 50 mm large caster
protective mat Unlock Lock
For shock absorption
■ Side handle
equipped
Side handles on both sides for
easy operation when moving
■12 drawers
7 sizes drawers Stable movement, no worry for wheel rotation.
correspond to your
various needs!
Top and corners is covered
with sturdy guard to prevent ■ Drawer lock
dents. mechanism
Designed for safety
■Logo plate and operability with
■Key lock Oversized "TONE" a m e c h a n i s m f o r
No worry for security. logo plate. operating the lever
inside the handle.
■Bearing type double rails drawers
Easy to open & close. Suitable for storing heavy
tools.

TONE's bigest tool cabinet. HEAVY ROLLER CABINET
With a 1265mm wide drawer and 6 types of other drawers.
Suitable for long items' storage.
Models WSH2012R

Width (w) Depth (d) Height (h)
Size mm：Dimensions 1412 610 1126
① 1230 527 123 × 1 Tray
② 371 527 79×3 Tray
③ 371 527 107 × 1 Tray
Inside dimensions mm： ④ 371 527 275 × 1 Tray
From upper Drawer
⑤ 777 527 79×3 Tray
⑥ 777 527 107 × 2 Tray
⑦ 777 527 163 × 1 Tray
● Bearing type double rails drawers Accessory
● Caster dia：φ150mm Surface mat 1
● Top workbench load capacity：2942N（300kgf） Drawer mat 12
Load capacity drawers ①：1177N（120kgf） Handle (incl. screws) 2
Load capacity drawers ②～⑦：686N（70kgf） Bolt with a hexagonal holl 4
● Max load capacity : Static 11670N（1190kgf） Ｍ 6 × 25（Across Flat 4mm） 4
Bolt with a hexagonal holl
※ Including products weight Ｍ 6 × 50（Across Flat 4mm）
● Weight：240kg Key 2
● Qty./Carton：1 Instruction manual 1
● Carton dimensions：w 1519 × d 719 × h 1280mm
WSH2012R

■ WSH2012R Heavy Roller Cabinet Dimensions
65 1412 65 1100 'VMM FYUFOUJPO
1265 610
,FZ
ᶃ
ᶄ ᶇ
ᶄ ᶇ
1126 948 ᶄ ᶅ ᶇ ᶈ
WARNING ᶆ ᶈ
● Place cabinets on flat space. ᶉ
● Do not draw out multiple drawers at same time. П150
'JYFE DBTUFS 'MFYBCMF DBTUFS
XJUI TUPQQFST 50

CAUTION Different retail price system appliae to which the manufacturer's recommended
98 ● Turn on the brake while using cabinet. price is indicated in white. Be careful.
