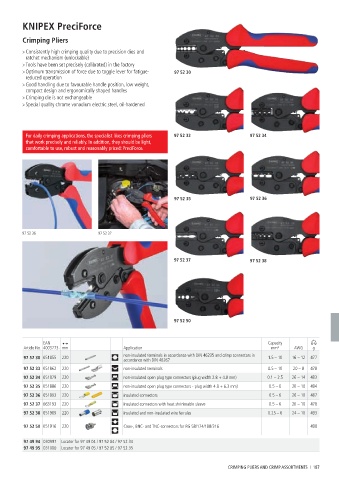

KNIPEX PreciForce

Crimping Pliers

> Consistently high crimping quality due to precision dies and
ratchet mechanism (unlockable)
> Tools have been set precisely (calibrated) in the factory
> Optimum transmission of force due to toggle lever for fatigue- 97 52 30
reduced operation
> Good handling due to favourable handle position, low weight,
compact design and ergonomically shaped handles
> Crimping die is not exchangeable
> Special quality chrome vanadium electric steel, oil-hardened

For daily crimping applications, the specialist likes crimping pliers 97 52 33 97 52 34
that work precisely and reliably. In addition, they should be light,
comfortable to use, robust and reasonably priced: PreciForce.

97 52 35 97 52 36

97 52 36 97 52 37

97 52 37 97 52 38

97 52 50

EAN Capacity
Article No. 4003773- mm Application mm² AWG g
non-insulated terminals in accordance with DIN 46235 and crimp connectors in
97 52 30 051855 220 accordance with DIN 46267 1.5 – 10 16 – 12 477
97 52 33 051862 220 non-insulated terminals 0.5 – 10 20 – 8 478

97 52 34 051879 220 non-insulated open plug type connectors (plug width 2.8 + 4.8 mm) 0.1 – 2.5 26 – 14 483

97 52 35 051886 220 non-insulated open plug type connectors - plug width 4.8 + 6.3 mm) 0.5 – 6 20 – 10 494

97 52 36 051893 220 insulated connectors 0.5 – 6 20 – 10 487
97 52 37 063193 220 insulated connectors with heat shrinkeable sleeve 0.5 – 6 20 – 10 478

97 52 38 051909 220 insulated and non-insulated wire ferrules 0.25 – 6 24 – 10 493

97 52 50 051916 220 Coax-, BNC- and TNC-connectors for RG 58/174/188/316 498

97 49 94 030997 Locator for 97 49 04 / 97 52 04 / 97 52 34
97 49 95 031000 Locator for 97 49 05 / 97 52 05 / 97 52 35

CRIMPING PLIERS AND CRIMP ASSORTMENTS I 187
