Ball bearing slides Lockable

Bottom rubber mats Plastic drawer divider
to avoid slipping for cabinet

Steel ball

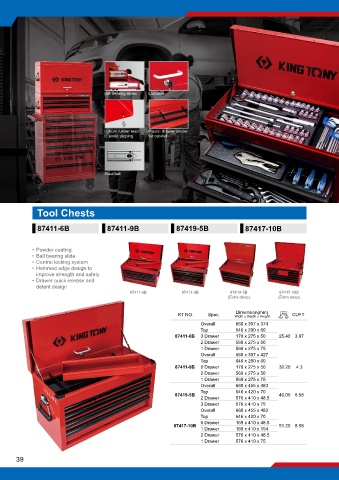

Tool Chests

87411-6B 87411-9B 87419-5B 87417-10B

• Powder coating
• Ball bearing slide
• Central locking system
• Hemmed edge design to
improve strength and safety
• Drawer quick release and
detent design
87411-6B 87411-9B 87419-5B 87417-10B
(Extra deep) (Extra deep)

Dimension(mm)
KT NO. Spec. Width x Depth x Height kg CUFT
Overall 660 x 307 x 374
Top 646 x 290 x 60
87411-6B 3 Drawer 170 x 275 x 50 25.40 3.97
2 Drawer 569 x 275 x 50
1 Drawer 569 x 275 x 75
Overall 660 x 307 x 427
Top 646 x 290 x 60
87411-9B 6 Drawer 170 x 275 x 50 30.20 4.3
2 Drawer 569 x 275 x 50
1 Drawer 569 x 275 x 75
Overall 660 x 455 x 483
Top 646 x 420 x 70
87419-5B 40.00 8.58
2 Drawer 576 x 410 x 48.5
3 Drawer 576 x 410 x 75
Overall 660 x 455 x 483
Top 646 x 420 x 70
6 Drawer 169 x 410 x 48.5
87417-10B 51.20 8.58
1 Drawer 169 x 410 x 154
2 Drawer 576 x 410 x 48.5
1 Drawer 576 x 410 x 75

39
