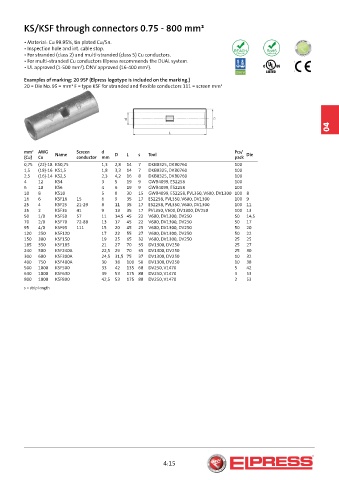

KS/KSF through connectors 0.75 - 800 mm²

• Material: Cu 99.95%, tin plated Cu/Sn.
• Inspection hole and int. cable stop.
• For stranded (class 2) and multi-stranded (class 5) Cu conductors.
• For multi-stranded Cu conductors Elpress recommends the DUAL system.
• UL approved (1-500 mm²). DNV approved (16-400 mm²).

Examples of marking: 20 95F (Elpress logotype is included on the marking.)
20 = Die No. 95 = mm² F = type KSF for stranded and flexible conductors 111 = screen mm²

04

mm² AWG Name Screen d D L s Tool Pcs/ Die
(Cu) Cu conductor mm pack
0,75 (22)-18 KS0,75 1,3 2,8 14 7 DKB0325, DKB0760 100
1,5 (18)-16 KS1,5 1,8 3,3 14 7 DKB0325, DKB0760 100
2,5 (16)-14 KS2,5 2,3 4,2 16 8 DKB0325, DKB0760 100
4 12 KS4 3 5 19 9 GWB4099, ES2258 100
6 10 KS6 4 6 19 9 GWB4099, ES2258 100
10 8 KS10 5 8 30 15 GWB4099, ES2258, PVL350, V600, DV1300 100 8
16 6 KSF16 15 6 9 35 17 ES2258, PVL350, V600, DV1300 100 9
25 4 KSF25 21-29 8 11 35 17 ES2258, PVL350, V600, DV1300 100 11
35 2 KSF35 41 9 13 35 17 PVL350, V600, DV1300, DV250 100 13
50 1/0 KSF50 57 11 14,5 45 22 V600, DV1300, DV250 50 14,5
70 2/0 KSF70 72-88 13 17 45 22 V600, DV1300, DV250 50 17
95 4/0 KSF95 111 15 20 45 25 V600, DV1300, DV250 50 20
120 250 KSF120 17 22 55 27 V600, DV1300, DV250 50 22
150 300 KSF150 19 25 65 32 V600, DV1300, DV250 25 25
185 350 KSF185 21 27 70 35 DV1300, DV250 25 27
240 500 KSF240A 22,5 29 70 35 DV1300, DV250 25 30
300 600 KSF300A 24,5 31,5 75 37 DV1300, DV250 10 32
400 750 KSF400A 30 38 100 50 DV1300, DV250 10 38
500 1000 KSF500 33 42 135 68 DV250, V1470 5 42
630 1000 KSF630 39 53 175 88 DV250, V1470 3 53
800 1000 KSF800 42,5 53 175 88 DV250, V1470 2 53
s = strip length
