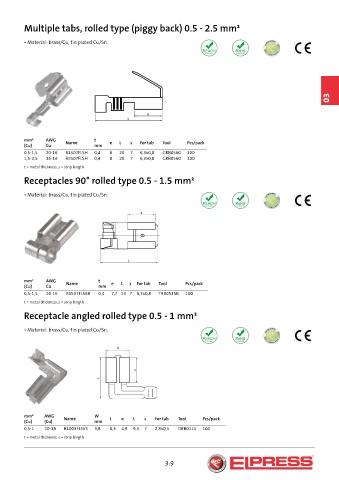

P. 57
Multiple tabs, rolled type (piggy back) 0.5 - 2.5 mm²
• Material: brass/Cu, tin plated Cu/Sn.
03
mm² AWG Name t e L s For tab Tool Pcs/pack
(Cu) Cu mm
0,5-1,5 20-16 B1507FLSH 0,4 8 20 7 6,3x0,8 GRB0560 100
1,5-2,5 16-14 B2507FLSH 0,4 8 20 7 6,3x0,8 GRB0560 100
t = metal thickness, s = strip length
Receptacles 90° rolled type 0.5 - 1.5 mm²
• Material: brass/Cu, tin plated Cu/Sn.
mm² AWG Name t e L s For tab Tool Pcs/pack
(Cu) Cu mm
0,5-1,5 20-16 B1507FLSB8 0,4 7,7 13 7 6,3x0,8 TRB0515B 100
t = metal thickness, s = strip length
Receptacle angled rolled type 0.5 - 1 mm²
• Material: brass/Cu, tin plated Cu/Sn.
mm² AWG Name W t e L s For tab Tool Pcs/pack
(Cu) (Cu) mm
0,5-1 20-18 B1003FLSV5 3,8 0,3 4,9 9,3 7 2,8x0,5 DRB0115 100
t = metal thickness, s = strip length
3:9
