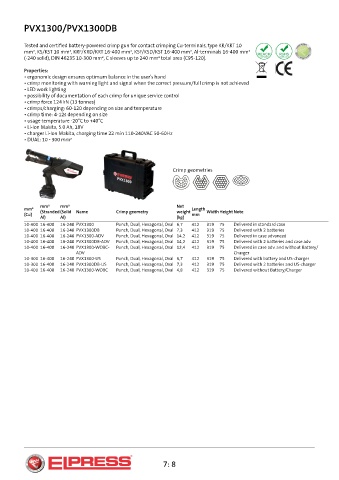

PVX1300/PVX1300DB

Tested and certified battery-powered crimp gun for contact crimping Cu-terminals, type KR/KRT 10
mm², KS/KST 10 mm², KRF/KRD/KRT 16-400 mm², KSF/KSD/KST 16-400 mm², Al-terminals 16-400 mm²
(-240 solid), DIN 46235 10-300 mm², C sleeves up to 240 mm² total area (C95-120).

Properties:
• ergonomic design ensures optimum balance in the user’s hand
• crimp monitoring with warning light and signal when the correct pressure/full crimp is not achieved
• LED work lighting
• possibility of documentation of each crimp for unique service control
• crimp force 124 kN (13 tonnes)
• crimps/charging: 60-120 depending on size and temperature
• crimp time: 4-12s depending on size
• usage temperature -20°C to +40°C
• Li-Ion Makita, 5.0 Ah, 18V
• charger Li-Ion Makita, charging time 22 min 110-240VAC 50-60Hz
• DUAL: 10 - 300 mm²

Crimp geometries

mm² mm² Net
mm² (Stranded (Solid Name Crimp geometry weight Length WidthHeight Note
(Cu) mm
Al) Al) (kg)
10-400 16-400 16-240 PVX1300 Punch, Dual, Hexagonal, Oval 6,7 412 319 75 Delivered in standard case
10-400 16-400 16-240 PVX1300DB Punch, Dual, Hexagonal, Oval 7,3 412 319 75 Delivered with 2 batteries
10-400 16-400 16-240 PVX1300-ADV Punch, Dual, Hexagonal, Oval 14,2 412 319 75 Delivered in case advanced
10-400 16-400 16-240 PVX1300DB-ADV Punch, Dual, Hexagonal, Oval 14,2 412 319 75 Delivered with 2 batteries and case adv.
10-400 16-400 16-240 PVX1300-WOBC- Punch, Dual, Hexagonal, Oval 12,4 412 319 75 Delivered in case adv. and without Battery/
ADV Charger
10-300 16-400 16-240 PVX1300-US Punch, Dual, Hexagonal, Oval 6,7 412 319 75 Delivered with battery and US-charger
10-300 16-400 16-240 PVX1300DB-US Punch, Dual, Hexagonal, Oval 7,3 412 319 75 Delivered with 2 batteries and US-charger
10-400 16-400 16-240 PVX1300-WOBC Punch, Dual, Hexagonal, Oval 4,8 412 319 75 Delivered without Battery/Charger
