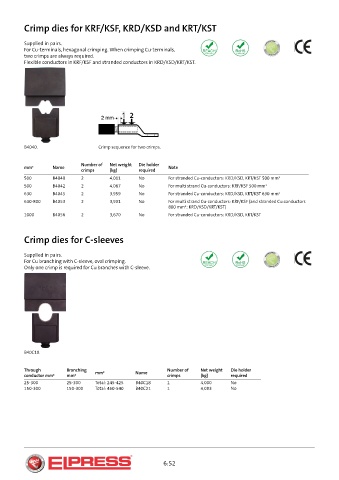

Page 162 - Elpress英文样本电气连接压接系统

Crimp dies for KRF/KSF, KRD/KSD and KRT/KST

Supplied in pairs.
For Cu-terminals, hexagonal crimping. When crimping Cu-terminals,
two crimps are always required.
Flexible conductors in KRF/KSF and stranded conductors in KRD/KSD/KRT/KST.

B4040. Crimp sequence for two crimps.

Number of Net weight Die holder
mm² Name Note
crimps (kg) required
500 B4040 2 4,011 No For stranded Cu-conductors: KRD/KSD, KRT/KST 500 mm²
500 B4042 2 4,067 No For multi strand Cu-conductors: KRF/KSF 500 mm²
630 B4045 2 3,959 No For stranded Cu-conductors: KRD/KSD, KRT/KST 630 mm²
630-800 B4053 2 3,901 No For multi strand Cu-conductors: KRF/KSF (and stranded Cu conductors
800 mm²: KRD/KSD/KRT/KST)
1000 B4056 2 3,670 No For stranded Cu-conductors: KRD/KSD, KRT/KST

Crimp dies for C-sleeves

Supplied in pairs.
For Cu branching with C-sleeve, oval crimping.
Only one crimp is required for Cu branches with C-sleeve.

B40C18.

Through Branching mm² Name Number of Net weight Die holder
conductor mm² mm² crimps (kg) required
25-300 25-300 Total: 245-425 B40C18 1 4,000 No
150-300 150-300 Total: 450-540 B40C21 1 4,083 No
