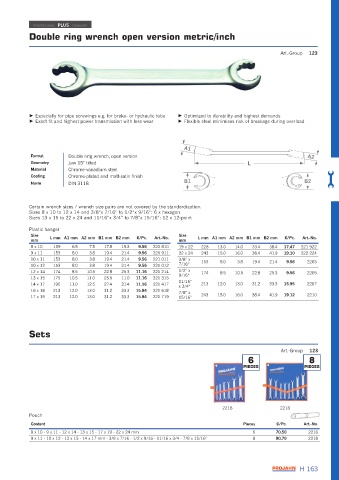

Double ring wrench open version metric/inch
Art.-Group 123

▶ Especially for pipe screwings e.g. for brake- or hydraulic tube ▶ Optimized to durability and highest demands
▶ Exact fit and highest power transmission with less wear ▶ Flexible steel minimises risk of breakage during overload

A1
Format Double ring wrench, open version A2
Geometry Jaw 15° tilted L
Material Chrome-vanadium steel
Coating Chrome-plated and matt-satin finish
Norm DIN 3118 B1 B2

Certain wrench sizes / wrench size pairs are not covered by the standardization.
Sizes 8 x 10 to 12 x 14 and 3/8“x 7/16“ to 1/2“x 9/16“: 6 x hexagon
Sizes 13 x 15 to 22 x 24 and 11/16“x 3/4“ to 7/8“x 15/16“: 12 x 12-point

Plastic hanger
Size L mm A1 mm A2 mm B1 mm B2 mm €/Pc. Art.-No. Size L mm A1 mm A2 mm B1 mm B2 mm €/Pc. Art.-No.
mm mm
8 x 10 139 6.5 7.5 17.8 19.3 9.56 220 810 19 x 22 228 13.0 14.0 33.4 38.4 17.47 221 922
9 x 11 153 8.0 3.8 19.4 21.4 9.56 220 911 22 x 24 243 15.0 16.0 38.4 41.9 19.10 222 224
10 x 11 153 8.0 3.8 19.4 21.4 9.56 221 011 3/8“ x 153 8.0 3.8 19.4 21.4 9.56 2203
10 x 12 153 8.0 3.8 19.4 21.4 9.56 221 012 7/16“
12 x 14 174 8.5 10.5 22.8 25.3 11.16 221 214 1/2“ x 174 8.5 10.5 22.8 25.3 9.56 2205
13 x 15 175 10.5 11.0 25.5 11.0 11.16 221 315 9/16“
14 x 17 195 11.0 12.5 27.4 31.4 11.16 221 417 11/16“ 213 12.0 13.0 31.2 33.3 15.95 2207
x 3/4“
16 x 18 213 12.0 13.0 31.2 33.3 15.94 221 618 7/8“ x
17 x 19 213 12.0 13.0 31.2 33.3 15.94 221 719 15/16“ 243 15.0 16.0 38.4 41.9 19.12 2210

Sets

Art.-Group 123
6 8
PIECES PIECES

2216 2218
Pouch
Content Pieces €/Pc. Art.-No.
8 x 10 - 9 x 11 - 12 x 14 - 13 x 15 - 17 x 19 - 22 x 24 mm 6 70.50 2216
9 x 11 - 10 x 12 - 13 x 15 - 14 x 17 mm - 3/8 x 7/16 - 1/2 x 9/16 - 11/16 x 3/4 - 7/8 x 15/16“ 8 90.70 2218

H 163
